First lens cuts!

nicosauve1

I should Work at Oakley
1,412
1,793
Humboldt County, CA
had a couple donors and just went for it today.
24k polar for desert tan R1
Emerald polar for rootbeer PB1

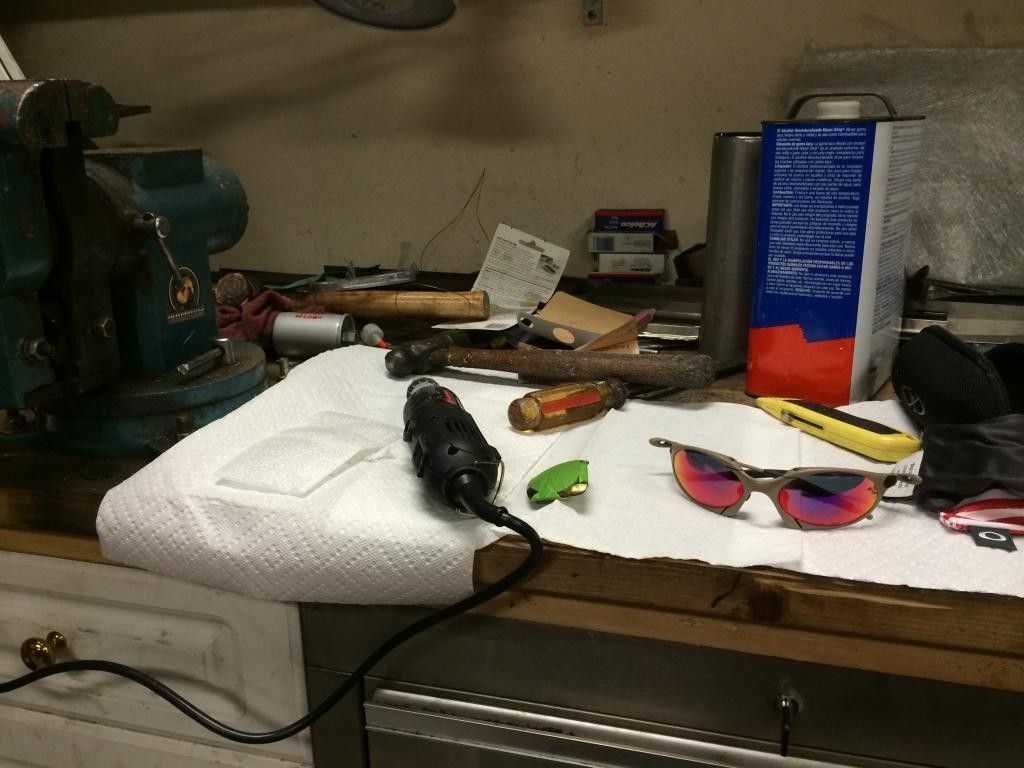

done in my dads garage! R1 was linegear premium red to start

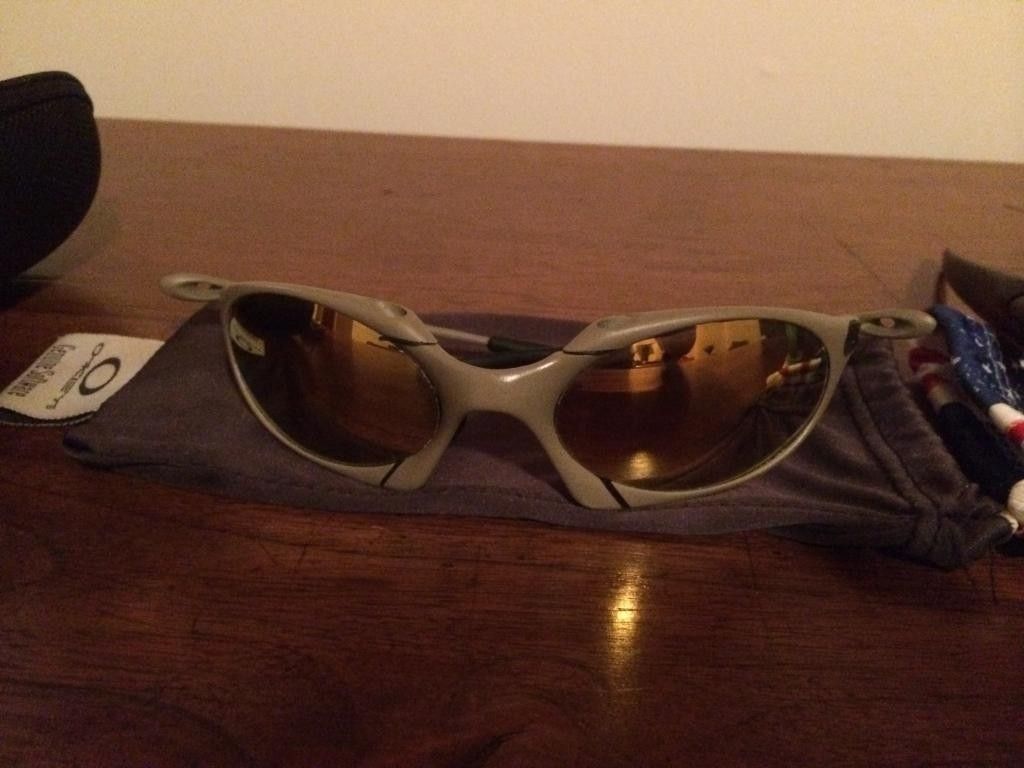

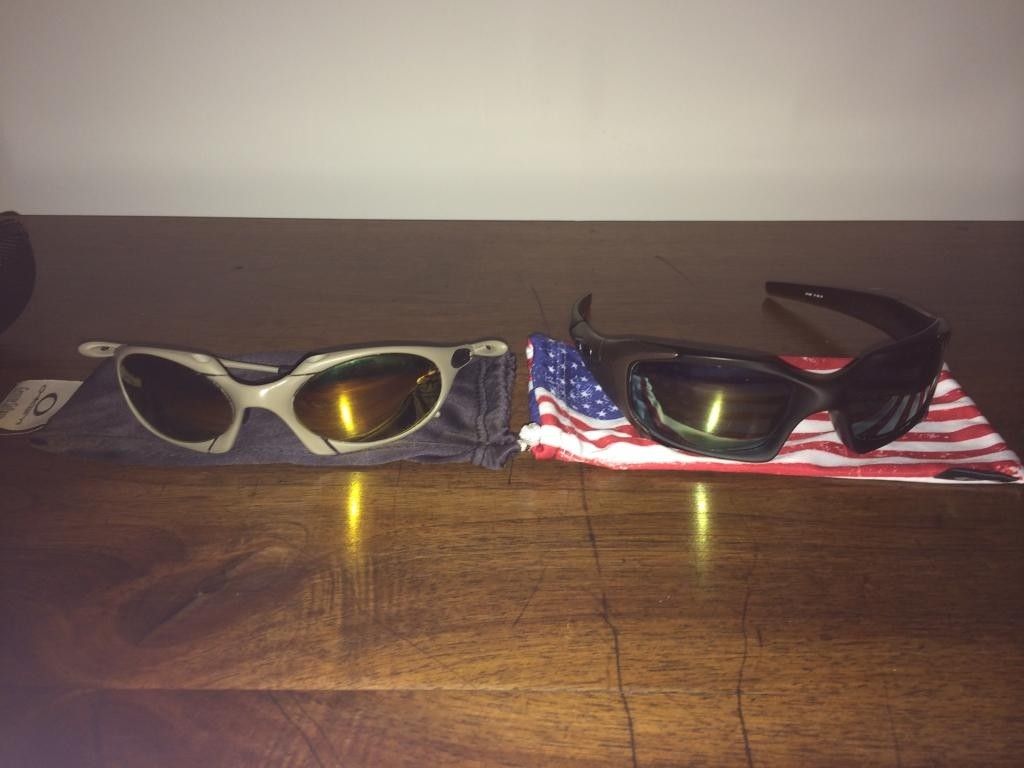

The results!
9E2DE245-7907-466B-A8A3-95DCA813F487_zps8wx1wxkq.jpgEA1C42C7-6311-425E-92D8-0FD364C2B43F_zpsnrgep9cw.jpg


the r1 was my learner and it was humbling. Difficult shape and fit to say the least. Couple tiny gaps but otherwise good and got the polarized etching in there too.

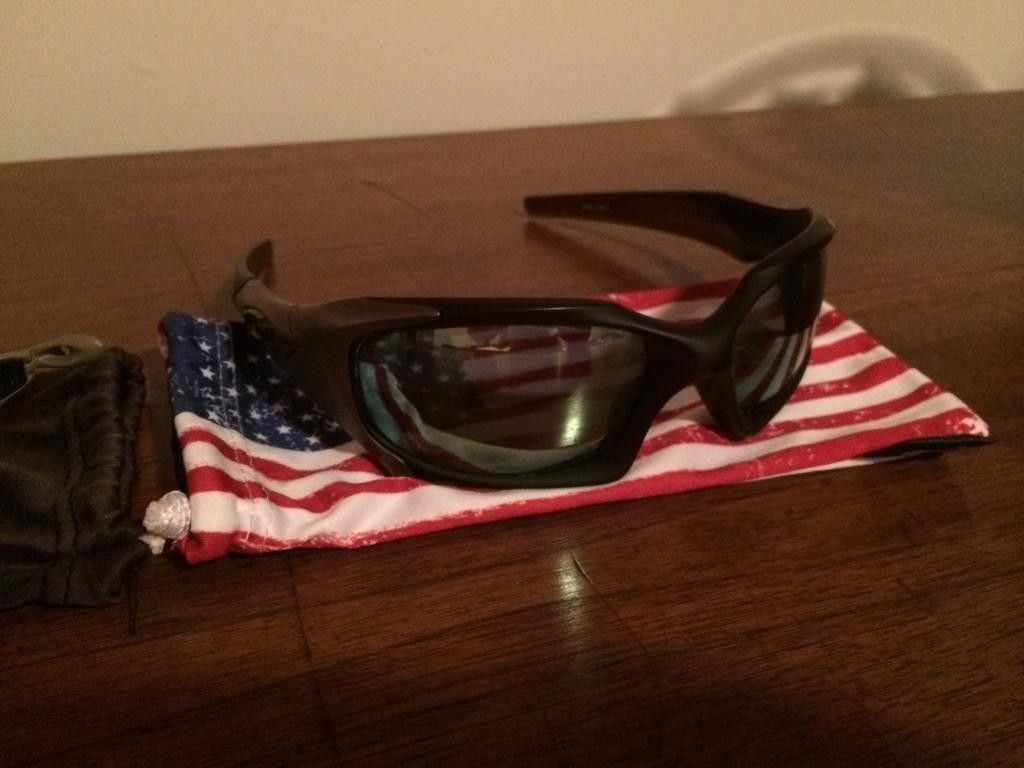

The Pb1 is perfect with polarized etching and all!

If you used Big Taco donors for the Pitboss u cannot keep logo etching if u want the polarization to work.Great colour choice btw

not sure but the polarized etching is still on the bottom left of the left lens when looking through, does that mean yes?

No, cutting polars is tricky, you have to check two things - 1) are they still blocking polarized light from the correct angle? 2) are both lenses in the same alignment?

You can answer both of these with a LCD screen test. Since LCDs are polarized, you can line up the polar filters on the lenses to block the polarized light coming from a LCD screen.

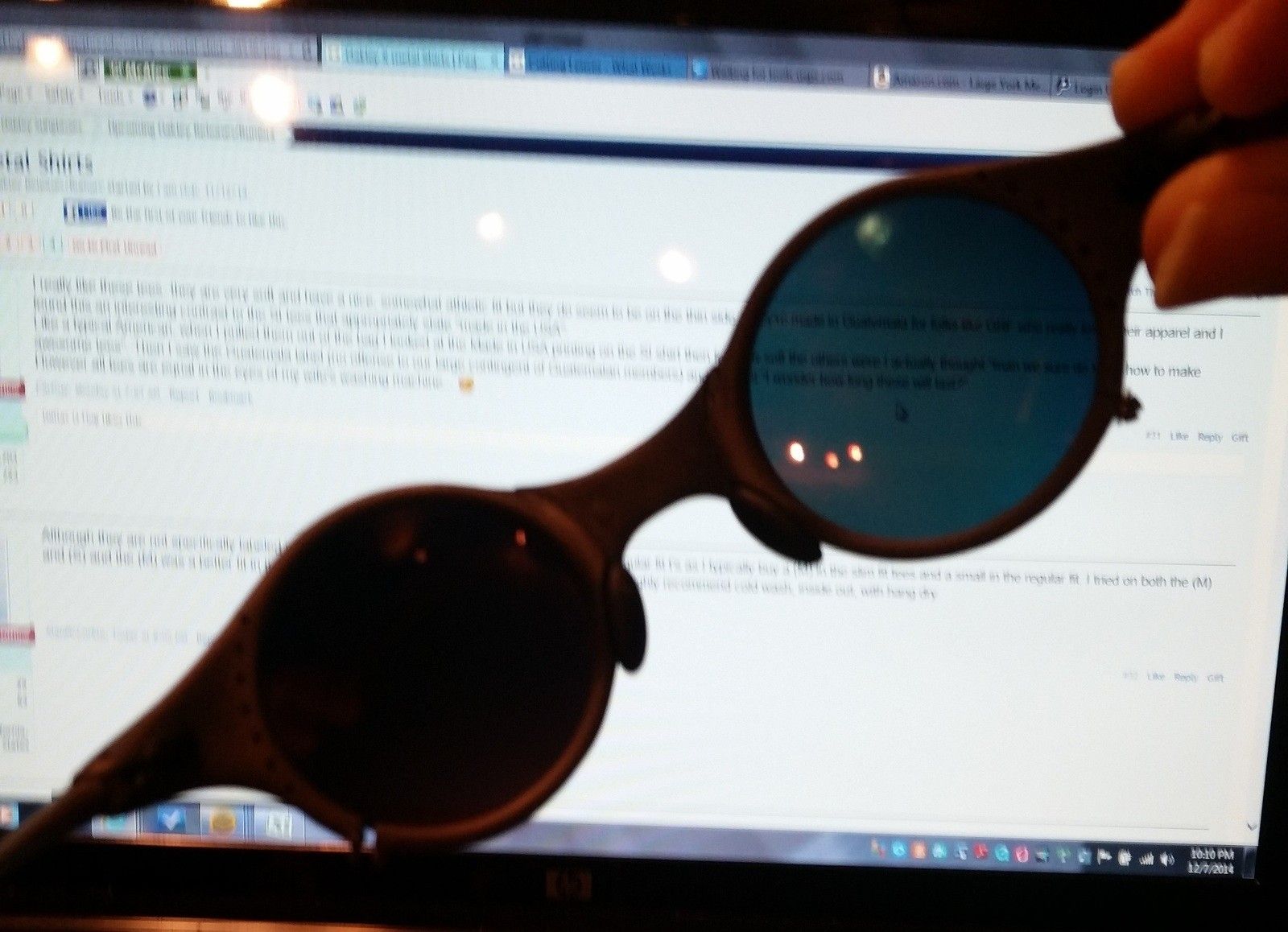

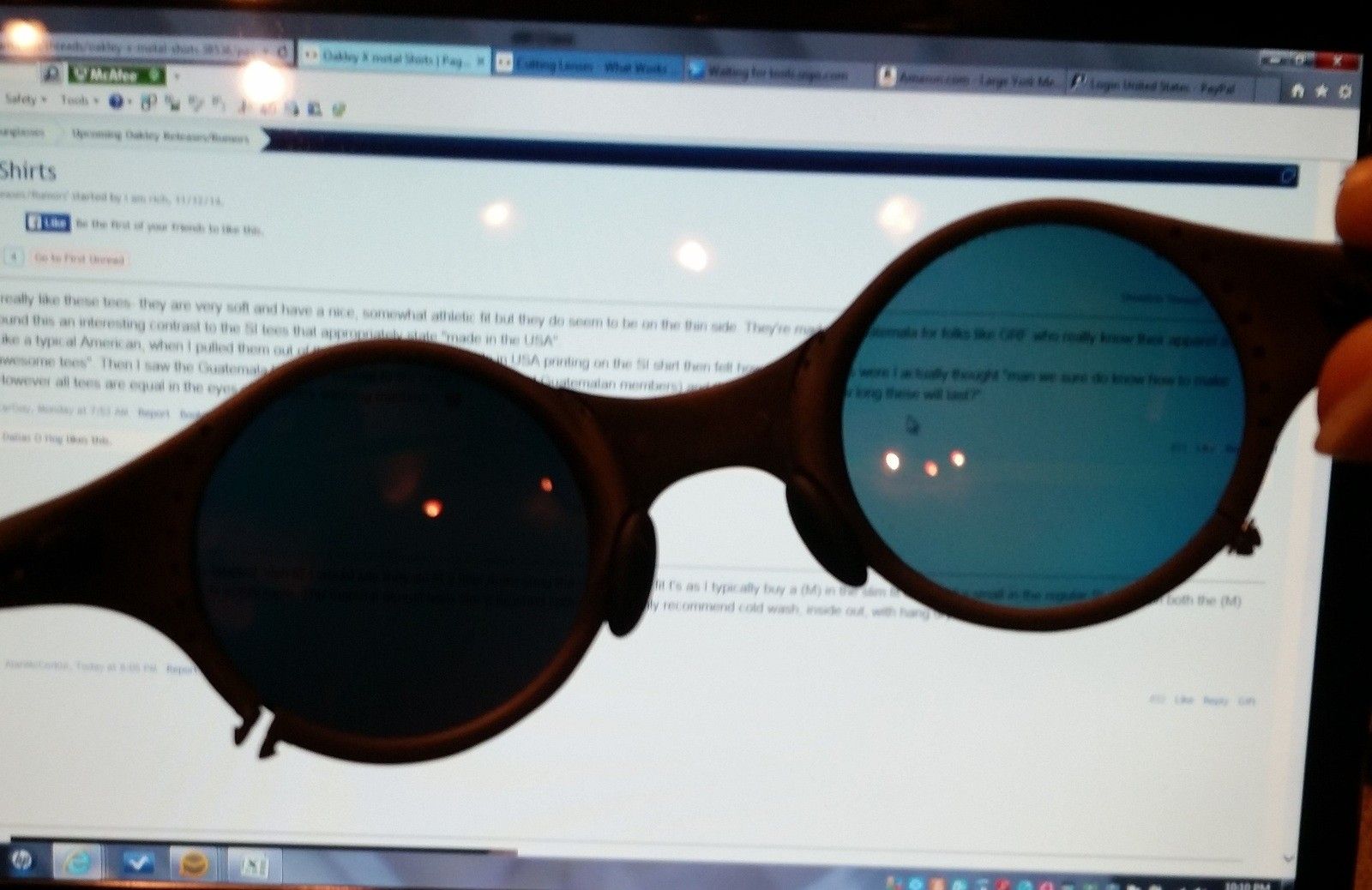

First get a benchmark - use some OEM polars to verify what the correct angle should be with the LCD screen you're using for the test. On some of my LCDs it's 45 degrees while on others it's 90 degrees. Here's what it looks like at 45 degrees:





Then do the same test with your cuts. If they darken the screen when they hit the same angle as the OEMs, you're good with question #1.

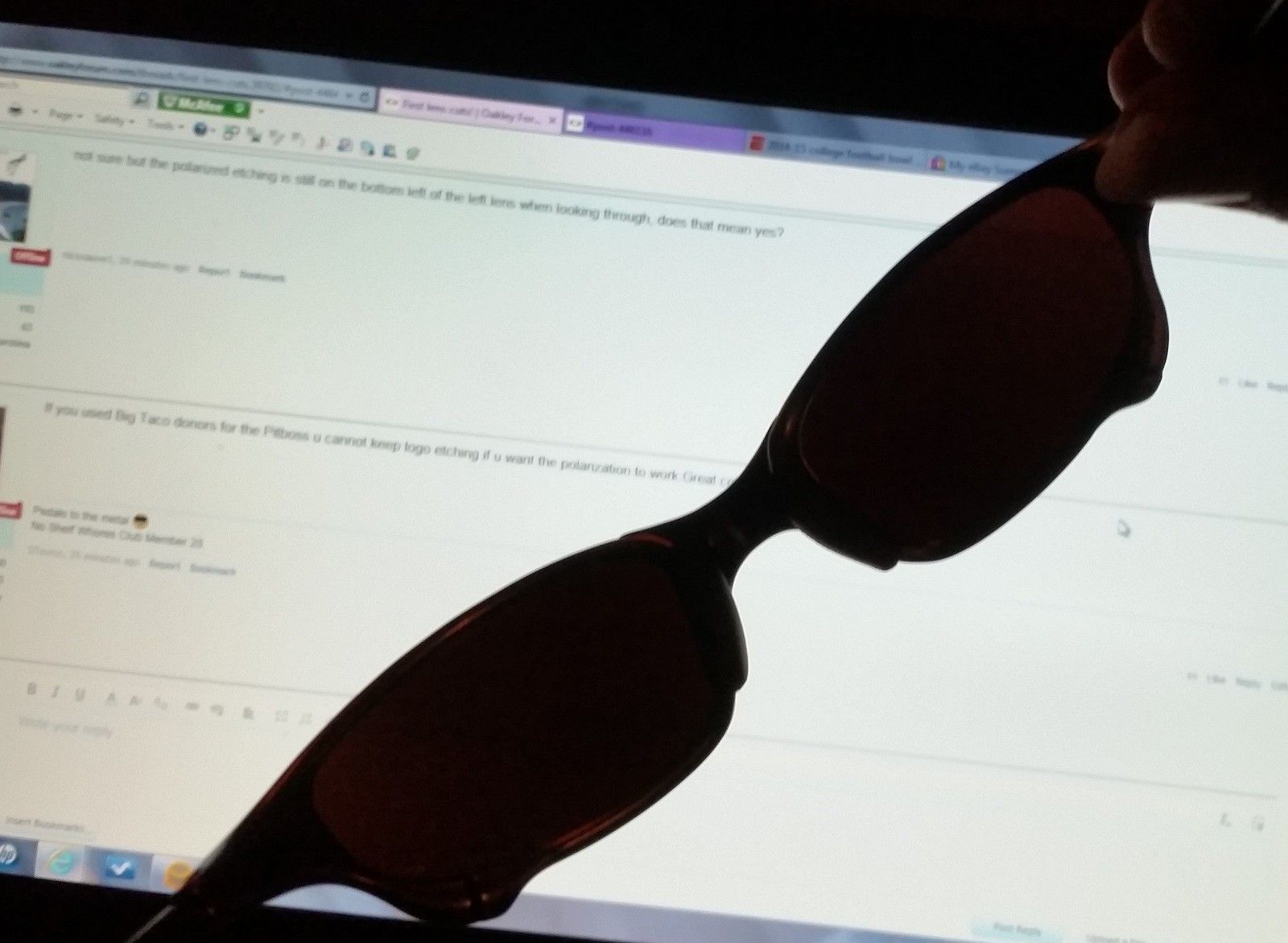

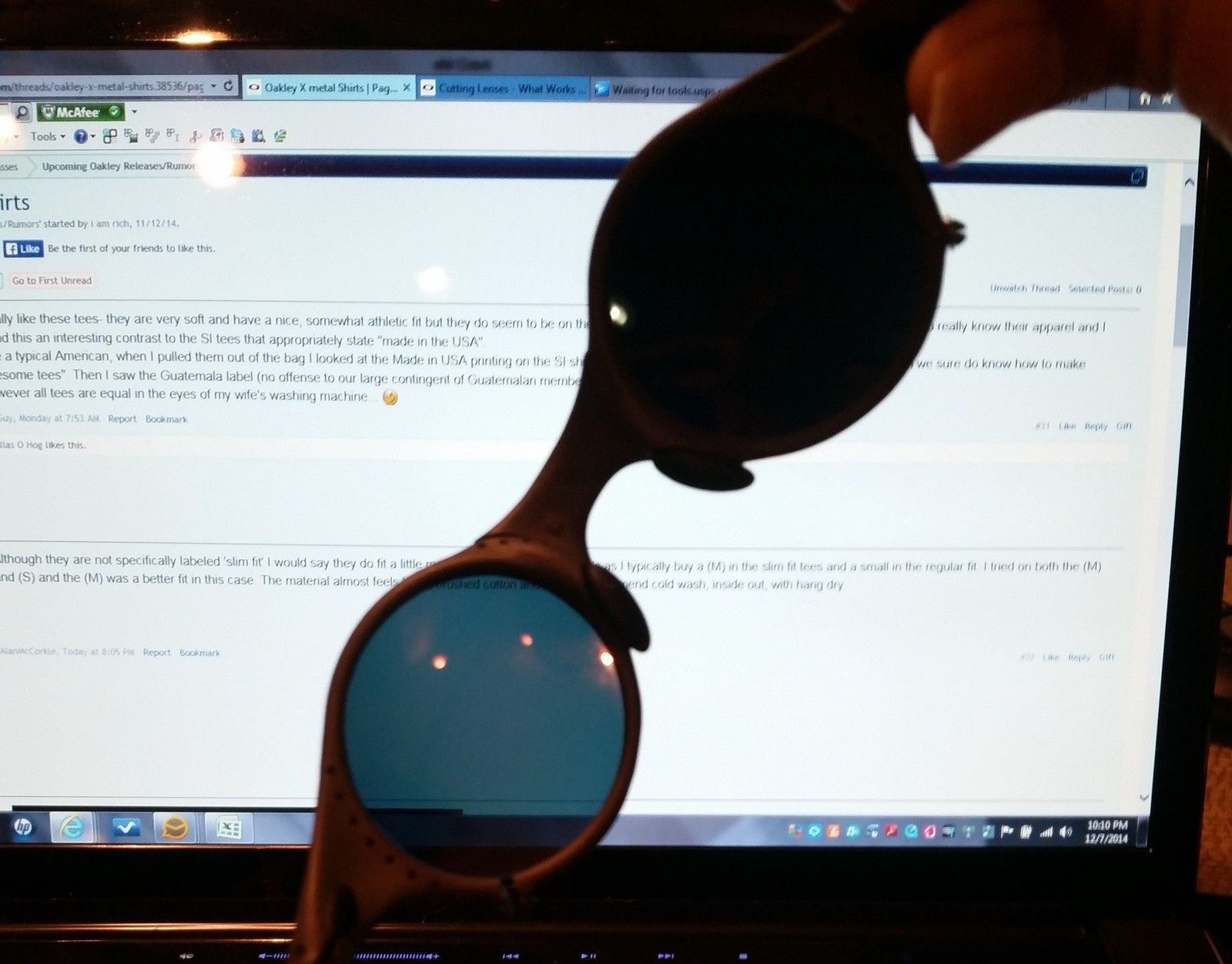

But at the same time you want to look that both lenses darken / lighten at the same time. If they do, you're good with question #2. If not, the lenses are out of sync and you'll get a lot more disorienting rainbow effects while wearing them. Here's what an off batch looks like:







Please be aware I'm not trying to knock your work, but to provide constructive feedback that could be helpful if you do more cutting. If you don't want to hear it, feel free to tell me to f off...:D

Congrats on the lenses :)

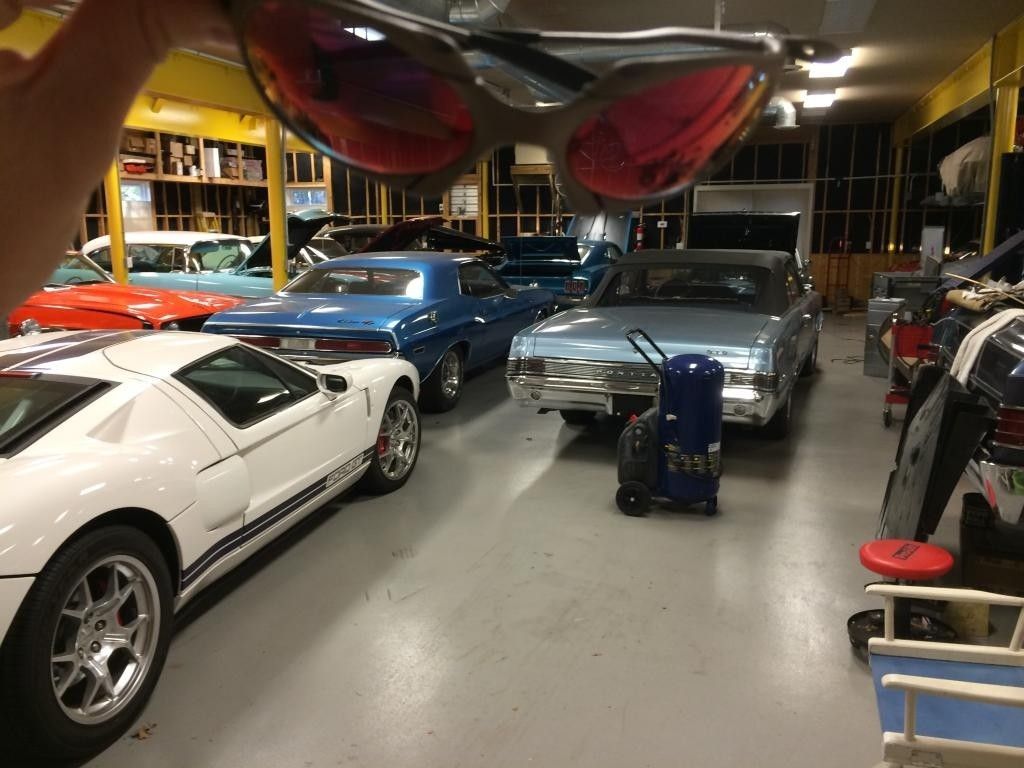

That's a beautiful stable full of horsepower there! :cool-20:
