Who’s got them for double wides?
@qtrain23,
Here you go. Sorry it's not quite as "clean" as I'd like. I got my family to measure them in Australia, so I hope the measurements are accurate.

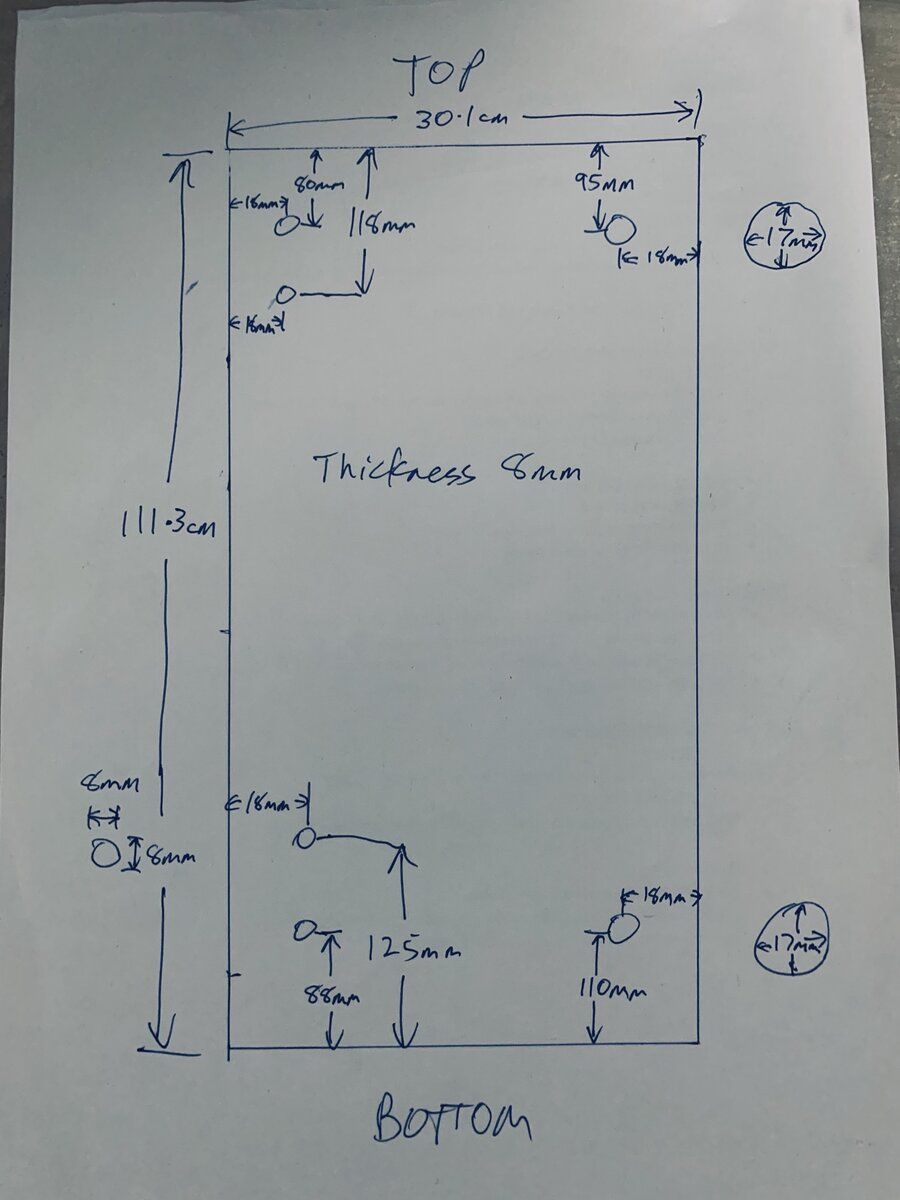

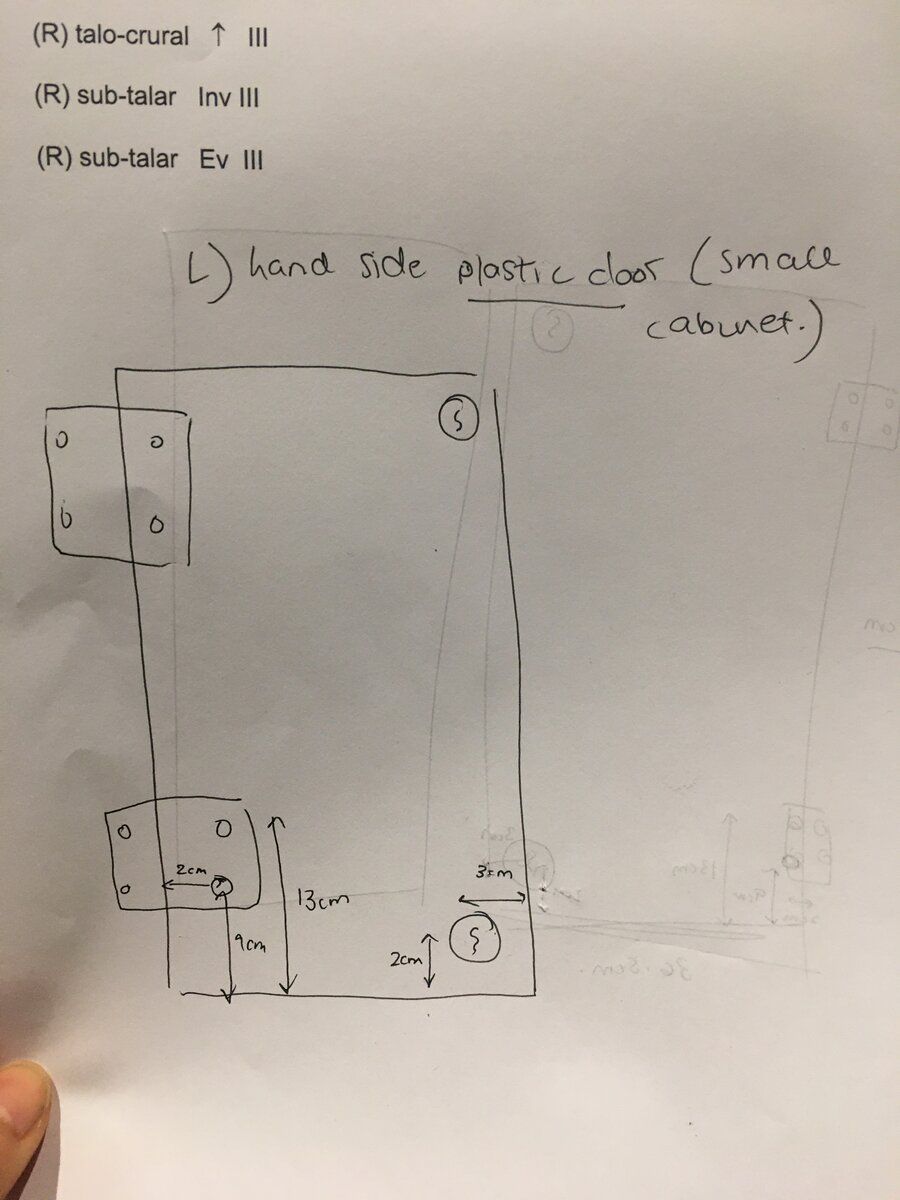

Double wide dimensions. 8 mm thickness of perspex.


Double wide position of holes (17 mm diam. for locks and 8 mm diam. for four bolt holes for hinges).

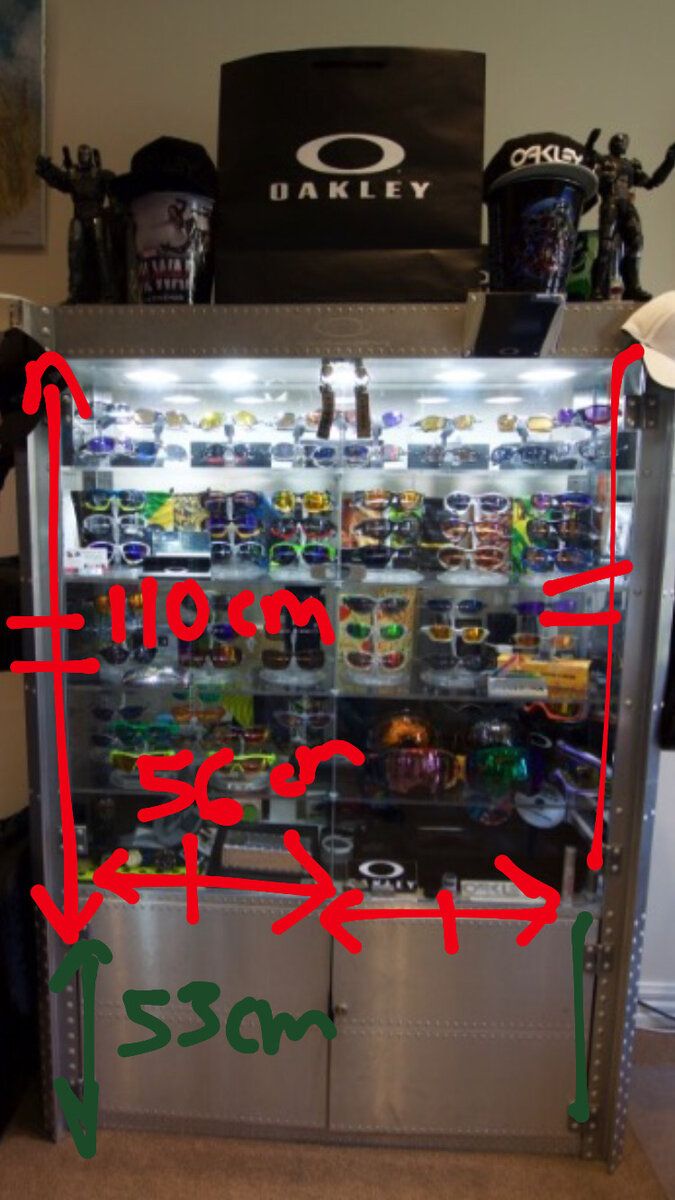

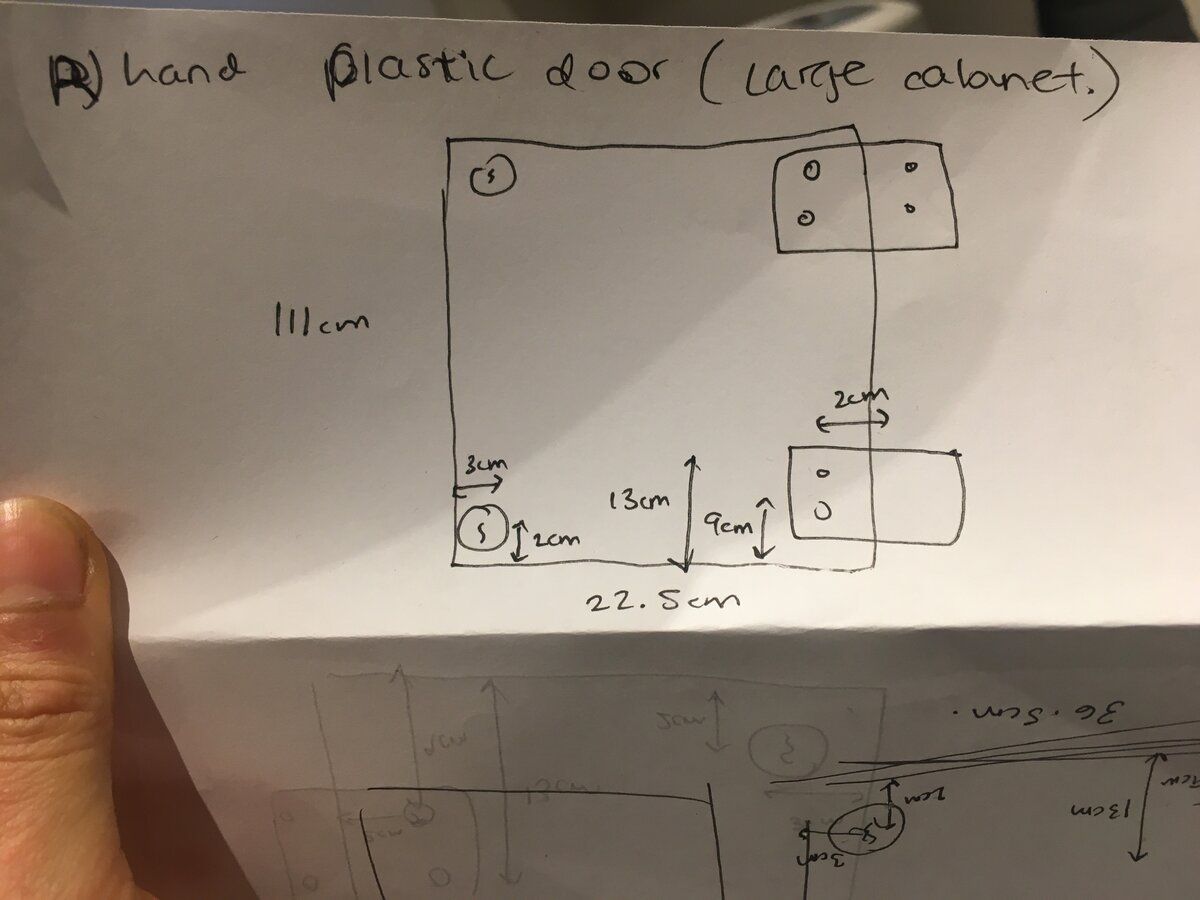

Height and width of triple wide cabinet perspex glass doors. 8mm thickness


Positions of holes (17 mm diam. for locks and 8 mm diam. for four bolt holes for hinges).


IUSTEVE

Oakley Expert
3,416
723
INDIANA

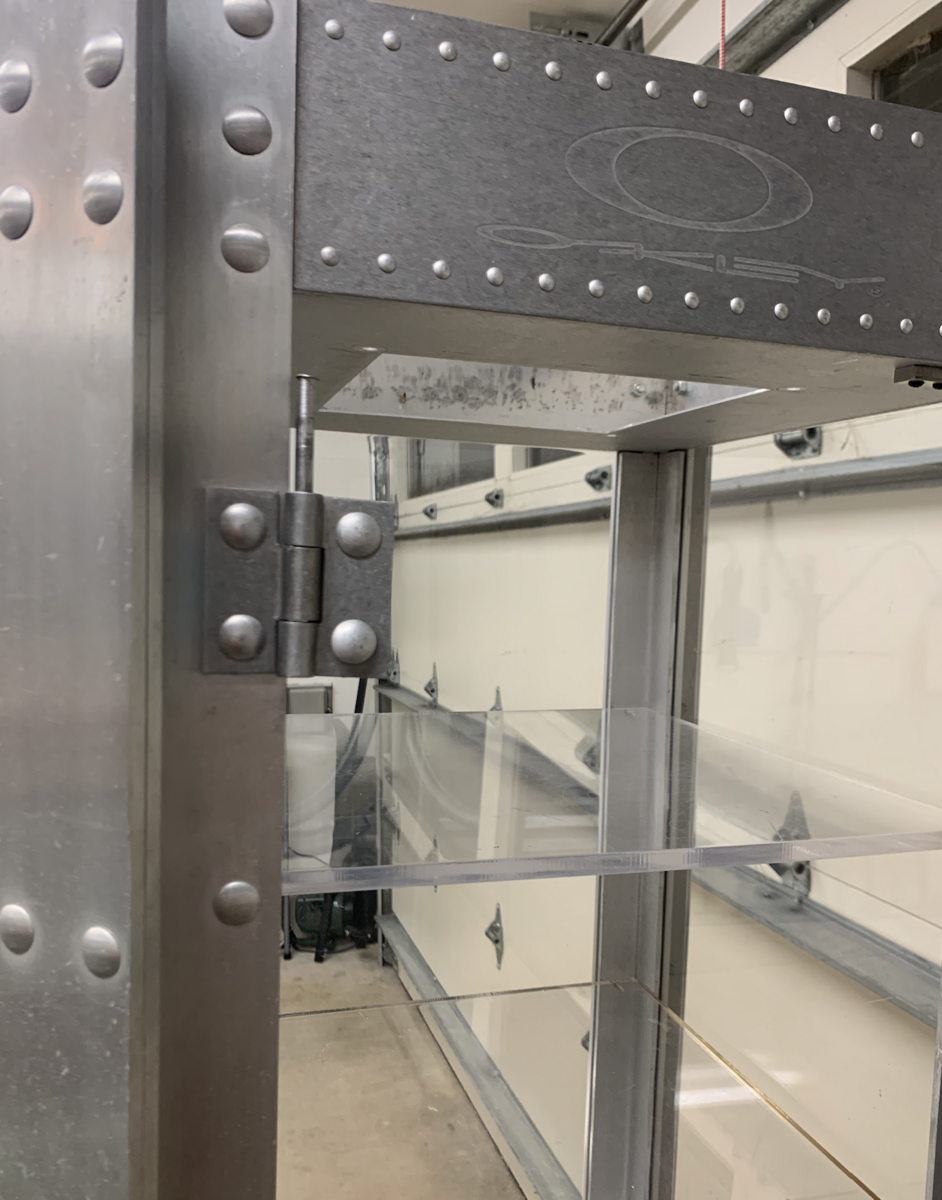

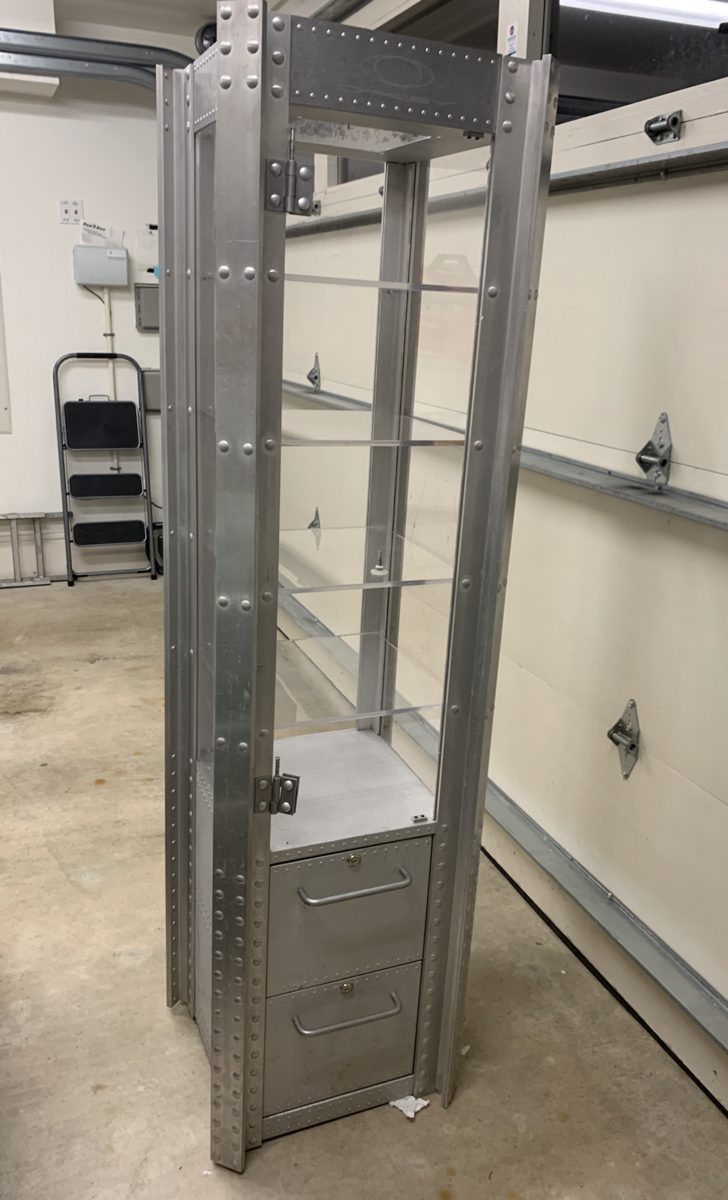

just picked up my first case but its missing the plexiglass door. does anyone know the exact size HxW and thickness. also measurements for locks and bolt holes? It would super help me out as I would like to make it as original as possible but you don't often see these in the wild anymore to get the measurements. thanks for your help

mkx

View attachment 782688

View attachment 782689
If you’re looking for the light fixture for the top let me know. I have one laying around
